Scientific insights in the preparation and characterisation of a lead-based naga bhasma

*Corresponding Author:

S. Sethuraman
Centre for Nanotechnology and Advanced Biomaterials, School of Chemical and Biotechnology,Thanjavur-613 401, India
E-mail: swami@sastra.edu

Abstract

Naga bhasma is one of the herbo-metallic preparations used in Ayurveda, a traditional Indian System of Medicine. The preparation of Naga bhasma involves thermal treatment of 'Naga' (metallic lead) in a series of quenching liquids, followed by reaction with realgar and herbal constituents, before calcination to prepare a fine product. We have analysed the intermediates obtained during different stages of preparation to understand the relevance and importance of different steps involved in the preparation. Our results show that 'Sodhana' (purification process) removes heavy metals other than lead, apart from making it soft and amenable for trituration. The use of powders of tamarind bark and peepal bark maintains the oxidation state of lead in Jarita Naga (lead oxide) as Pb 2+ . The repeated calcination steps result in the formation of nano-crystalline lead sulphide, the main chemical species present in Naga bhasma.

Keywords

Sodhana (purification), naga bhasma, lead, lead oxide, lead sulphide, calcination

Ayurveda, an ancient system of medicine, has been practiced in India since time immemorial. Plants, minerals, molecules from animal sources are used for the preparation of Ayurvedic drugs. Bhasmas are one of the main components in Ayurvedic system of medicine and are used to treat various chronic ailments and maintain good health of an individual. Bhasmas are herbo-metallic ashes in which the metal is calcined along with various herbal ingredients to form complexes [1,2]. These complexes should neither contain free metal nor contain free organic constituents, whose presence in bhasma indicates improper calcination [3]. Lead is one of the seven metals used for preparation of bhasma. Several studies have reported the presence of heavy metals like lead, mercury, arsenic and others in high amounts in bhasma [4-6]. Owing to its insoluble nature, lead sulphide (PbS) is the least toxic form of lead [7].

Naga bhasma, an Ayurvedic lead-based herbo-metallic medicine, has its history of medicinal applications dating several centuries back. Naga bhasma, with its predominant chemical species being PbS, administered at 6 mg/kg body weight was found to be nontoxic in animal model [7]. Naga bhasma has specific regenerative potential on germinal epithelium of testes in CdCl₂ administered albino rats [8]. In addition to treating diabetes mellitus, Naga bhasma has been prescribed for certain disorders related to liver, spleen and skin. Few clinical trials have also shown that Naga bhasma considerably reduces blood glucose level in diabetic patients [9]. Singh et al. reported the presence of hydrogenated amorphous carbon in Naga bhasma, an indication for possible presence of organic moieties [10]. Preparation protocol plays a major role in deciding the therapeutic efficacy as well as the toxic effects of bhasmas. According to Ayurvedic experts, nonconformity to the preparation protocol causes toxicity, probably due to incomplete transformation of free metal [11]. Naga bhasma procured from different manufacturers revealed differences in their composition, which could be attributed to different procedures adopted for preparation [3,12]. Hence, a standard operating procedure (SOP) for the preparation of Naga bhasma is essential to standardise the preparation [13]. Understanding the physico-chemical changes that occur during various stages of preparation, through characterisation of intermediates, will promote conformity to preparation protocol. This paper focuses on such a study for preparation of Naga bhasma.

Materials and Methods

Preparation of Naga bhasma

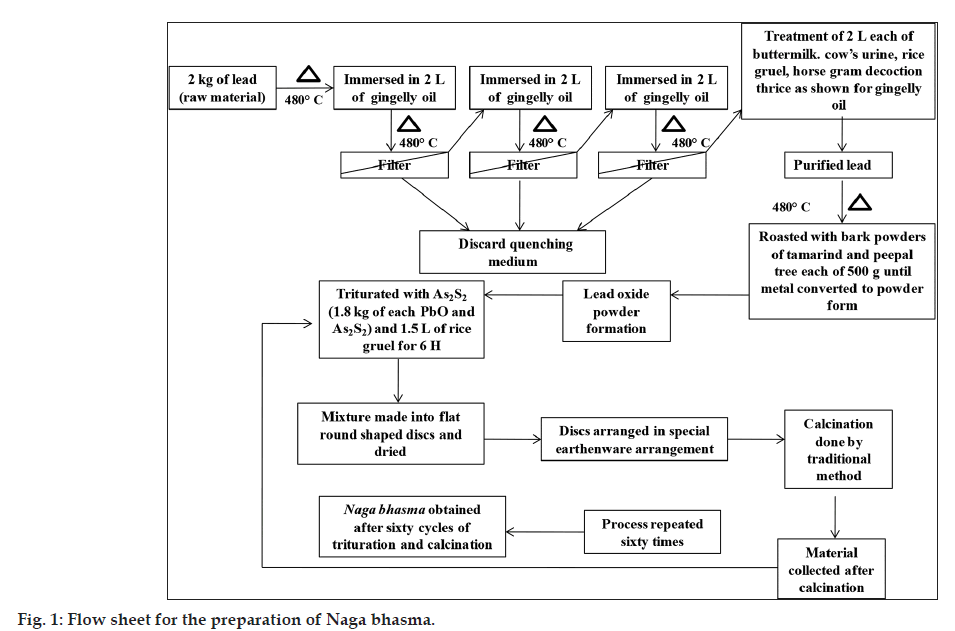

Naga bhasma was prepared using the procedure described in Ayurvedic Formulary of India [14]. The process flow diagram for the preparation of Naga bhasma is shown in fig. 1. The first step in the preparation of Naga bhasma is sodhana (a purification step), which involves sequential quenching in tila thaila (gingelly oil), takra (butter milk), kanjika (rice gruel), gomuthra (cow’s urine) and kulatha kasaya (horse gram decoction). About 2 kg of metallic lead was melted and immersed in 2 l of treating liquid. The quenched material was filtered out and this was repeated thrice with each treating liquid listed above. The Naga obtained at this stage is called Suddha Naga.

About 500 g of Aśvatthacūrņa (peepal bark powder) and 500 g of cincātvakcūrņa (tamarind bark powder) were mixed with 2 kg of Suddha Naga and heated until fine powders were formed. This is referred to as Jarita Naga . About 1.8 kg each of Jarita Naga and manashila (realgar; arsenic sulphide) were mixed with 1.5 l of kanjika and triturated well. This mixture was made into cakrikas, (thin flat disks), sun dried and subjected to puta. In traditional literature, puta refers to a process of controlled heating and cooling (calcination) of herbo-mineral mixture to achieve bhasmikaran or ashing. The material to be subjected to puta was taken in an earthen vessel and closed with another inverted earthen vessel. The interface between the two vessels was sealed with a clay-smeared cloth. This arrangement is known as Saravasamputa. Puta process for preparation of Naga bhasma involves 50 cycles of arddha gajaputa and 10 cycles of gajaputa, performed in a brick-lined calcination chamber measuring 90×90×90 cm. In a typical Arddha gajaputa step, saravasamputa was placed inside a heap of 125-150 cow dung cakes such that, equal number of cow dung cakes were above and below the Saravasamputa. The cow dung cakes were ignited to supply the thermal energy required for calcination. The gajaputa step is similar to arddha gajaputa, which utilises double the number of cow dung cakes (250-300) for calcination. The intermediate obtained after each arddha gajaputa and gajaputa step was triturated with a mixture of purified manashila (realgar; arsenic sulphide) and sufficient quantity (1.5 l) of kanjika. This mixture was sun dried to prepare cakrikas (thin flat disks) for subsequent arddha gajaputa and gajaputa steps.

Elemental analysis

An X-ray fluorescence spectrometer (S8 Tiger, Bruker AXS, Germany) equipped with 4 kW, Rh anode X-ray tube was used to determine the elemental composition. The aluminium cups (sample holder) were filled with 2 g of boric acid, on top of which 1 g of the sample was added. These were pelletised using a 25-tonne hydraulic press to obtain 34 mm diameter pellets of moderate thickness.

Powder X-ray diffraction analysis

A powder X-ray diffractometer (D8 Focus, Bruker AXS, Germany) equipped with Cu anode (40 kV, 30 mA) and photo scintillation detector was used to record the diffraction patterns of the samples. Scan was performed over an angular range (2θ) of 10-60° at the rate of 0.01°/sec.

Morphological analysis

The surface morphology of samples was observed using a cold Field Emission Scanning Electron Microscope (JSM 6701F, Jeol, Japan) at an acceleration voltage of 3 kV. A small quantity of the sample was sprinkled on a carbon tape mounted on a brass stub and sputter coated with gold, before imaging.

Spectroscopic analysis

Fourier Transform Infrared (FTIR) spectra of the samples were recorded between 4000 and 400/cm in FTIR spectrometer (Spectrum 100, Perkin Elmer, USA). The samples were prepared by mixing with KBr and pelletising them for analysis using diffuse reflectance accessory.

Electrospray ionisation mass spectrometry

For identification of key compounds present in the bark of Tamarindus indica and Ficus religiosa, their aqueous extracts were analysed by liquid chromatography/electrospray ionisation mass spectrometry (LC/ESI-MS) using Bruker UHPLC 3000 chromatography coupled to quadrupole ToF mass selective detector (micrOTOF-QII). The experimental conditions used for LC-MS analysis of Tamarindus indica and Ficus religiosa were followed as per procedure described by Krishnamachary et al. [15].

Results and Discussion

Table 1 show the elemental composition of various intermediates obtained during samanya sodhana, from which it is was observed that the relative mass percentage of lead in the intermediates increased during the samanya sodhana treatment. The raw material (lead) contained other metals like iron, ruthenium, silicon, molybdenum as impurities. The treating liquids used (gingelly oil, butter milk, cow’s urine, rice gruel and horse gram decoction) have been shown to form soluble-chelates with metals, leading to their removal. This resulted in the increase of relative mass percentage of lead from 97.13% in the raw material to 98.98% in the intermediate obtained after treatment with the horse gram decoction. Elemental composition of Jarita Naga, given in Table 2, shows that more than 90% of lead exists in oxide form.

Table 1: Elemental Composition Of Raw Material And Intermediates Obtained During Sodhana

Table 2: Elemental Composition Of Jarita Naga

Tables 3 show the elemental composition of cakrikas and the intermediate obtained after the first cycle of Arddha gajaputa. It is interesting to note that the arsenic content present in the cakrikas due to addition of realgar is reduced to below detectable limit after the first cycle of Arddha gajaputa.

Table 3: Elemental Composition of Cakrikas for the First Arddha Gajaputa Cycle and The Intermediate After First Arddha Gajaputa Cycle

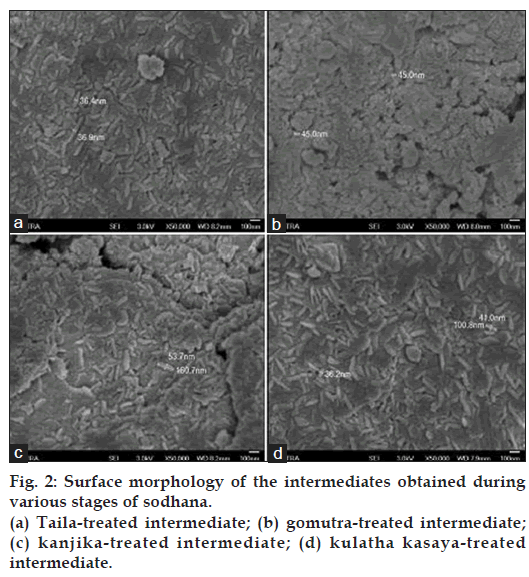

Fig. 2 shows the scanning electron micrographs of the intermediates obtained after each stage of sodhana during the preparation of Naga bhasma. These micrographs help to understand the changes in gross morphology during various stages of sodhana. It may be observed that there are substantial changes in the morphology of intermediates during sodhana (fig. 2). A common feature in the micrographs of intermediates is the appearance of rod-shaped, nanoscale structures on the surface. The width of the nanostructures lies between 30 and 50 nm, while the length ranges between 100 and 160 nm. High thermal stresses induced in the material during quenching are expected to form microcracks leading to increased surface area [16,17]. Sodhana has also led to substantial softening of the material transforming ductile lead to a brittle form, enabling ease of subsequent processing.

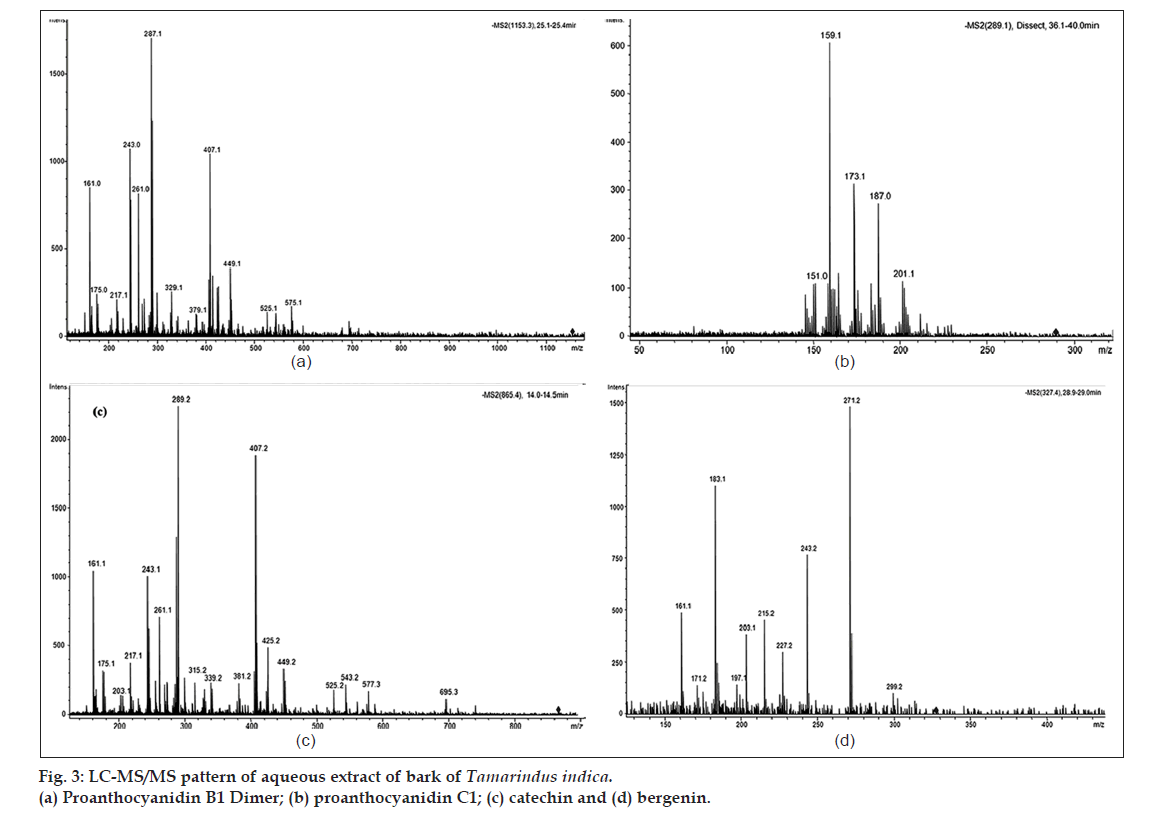

The characterisation of bark of Tamarindus indica and Ficus religiosa is essential to identify the key organic components present in them and their possible role in the preparation of Naga bhasma. The LC-MS/MS spectra of aqueous extract of bark of Tamarindus indica are shown in fig. 3. It was observed that the aqueous extract contained characteristic markers (proanthocyanidin B1 Dimer, proanthocyanidin C1, catechin and bergenin) reported for Tamarindus indica (fig. 3a-d). Bergenin has been reported to possess immumomodulatory effects. Also the polyphenols from Tamarindus indica possess excellent chelating ability that can serve to form complexes with metal ions.

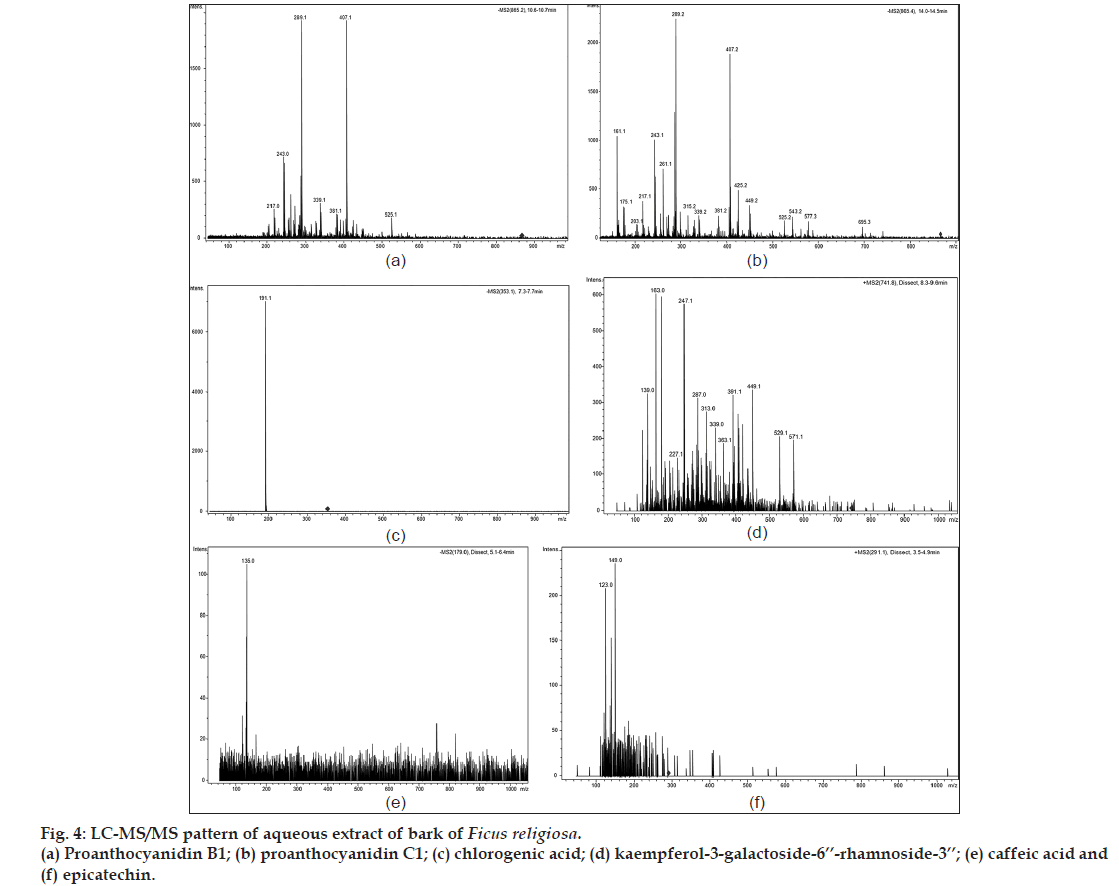

Fig. 4 shows the LC-MS/MS spectra of aqueous extract of bark of Ficus religiosa. It was observed that the extract contained proanthocyanidin B1, proanthocyanidin C1, chlorogenic acid, kaempferol- 3-galactoside-6’’-rhamnoside-3’’, caffeic acid and epicatechin, which are characteristic markers for Ficus religiosa (fig. 4a-f). The proanthocyanidins, chlorogenic and polyphenols from Ficus religiosa can form metal ion chelates. The flavonoids epicatechin and kaempferol present in Ficus religiosa are well-known antioxidants and antiinflammatory agents.

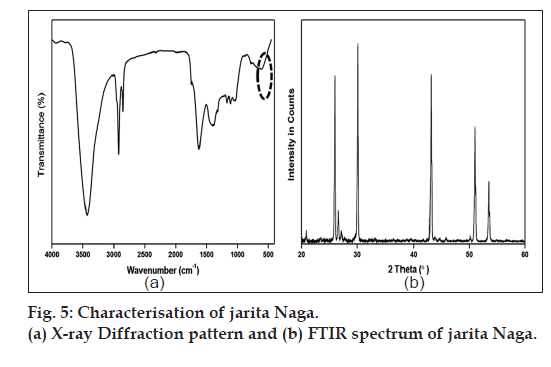

Fig. 5a shows the X-ray diffraction pattern of Jarita Naga, which is observed to be a crystalline material with diffraction peaks at 2θ of 26.5°, 30.5° and 54.0° characteristic of lead oxide (PbO). The analysis of various oxides present in Jarita Naga revealed the presence of PbO to the extent of 94.21%, with other oxides being CaO, K₂O and MgO (Table 2). These minerals may be incorporated from the bark of Tamarindus indica and Ficus religiosa during treatment of purified lead with the plant ingredients. The FTIR spectra of Jarita Naga reveal the presence of absorption band around 640/cm, which may be attributed to Pb–O bond (fig. 5b). This correlates very well with the X-ray diffraction patterns and elemental analysis.

From the spectroscopic and diffraction analyses of Jarita Naga, it is observed that the treatment of intermediate after sodhana with the powders of peepal bark and tamarind bark results in oxidation of metallic lead to lead oxide (Jarita Naga). The modification of morphology of metallic lead as a result of sodhana facilitated the oxidation reaction induced by treatment with these plant ingredients. When molten lead is exposed to air for longer duration of time without these plant ingredients, the same gets converted to its oxides, PbO and PbO₂. Of these two forms of lead oxide, PbO is useful for further transformation to Naga bhasma. The use of peepal bark and tamarind bark in the preparation of Jarita naga might have been probably aimed at reducing PbO₂ to PbO.

As evident from the XRF, XRD and FTIR results, major constituent of Jarita Naga is PbO. The cakrikas for the first arddha gajaputa cycle were made by grinding Jarita Naga (PbO) with realgar (As₂S₂) and kanjika (rice gruel). During this step, PbO is converted to PbS and As₂O₃ is formed through a slow reaction. The use of kanjika (rice gruel) facilitates wet grinding, leading to increased contact between the solid reagents (jarita naga and realgar) through decrease of particle size and increase of surface area [17-20]. The elemental compositions of cakrikas for first cycle of arddha gajaputa (made by grinding jarita naga with realgar and kanjika) and the intermediate after the first arddha gajaputa cycle are compared in Table 3.

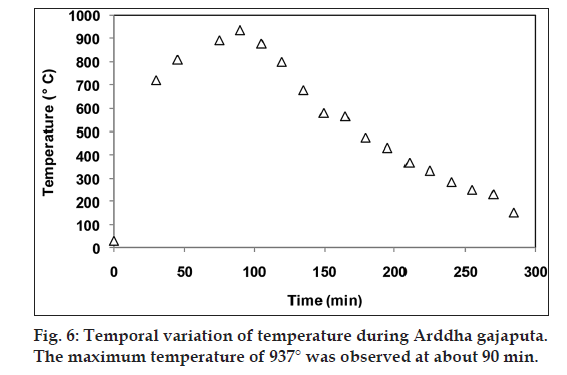

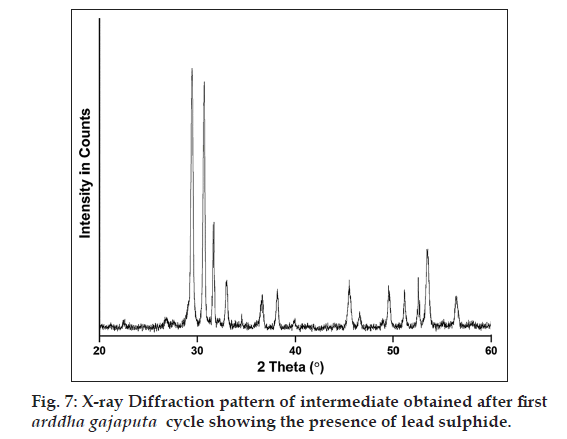

A comparison of elemental composition of cakrikas for the first arddha gajaputa cycle and the intermediate from the first arddha gajaputa cycle (Table 3) indicates that though arsenic was present in the cakrikas that were subjected to arddha gajaputa, the intermediate obtained after first arddha gajaputa cycle did not contain arsenic. This may be understood from the study of temporal variation of temperature during a typical arddha gajaputa cycle shown in fig. 6. High temperature prevails during calcination facilitating conversion of arsenic sulphide (As₂S₂) to arsenic oxide (As₂O₃) and the conversion of PbO to PbS [21]. The boiling point of arsenic oxide (As₂O₃) is about 465° and hence would have vaporised during the Arddha gajaputa cycle where temperature of above 800° was reached (fig. 6). This is confirmed from the X-ray diffraction patterns of the intermediate after the first Arddha gajaputa cycle, which shows diffraction peaks characteristic of PbS only (fig.7).

PbS is known to react with PbO when heated, leading to formation of metallic lead and sulphur dioxide [22].

PbS+2PbO→3Pb+SO₂

The addition of realgar during each gaja puta cycle may probably be aimed at suppressing the above reaction. The addition of realgar in excess quantity reacts with any unreacted PbO transforming the same to PbS. This ensures that the intermediates do not contain elemental lead.

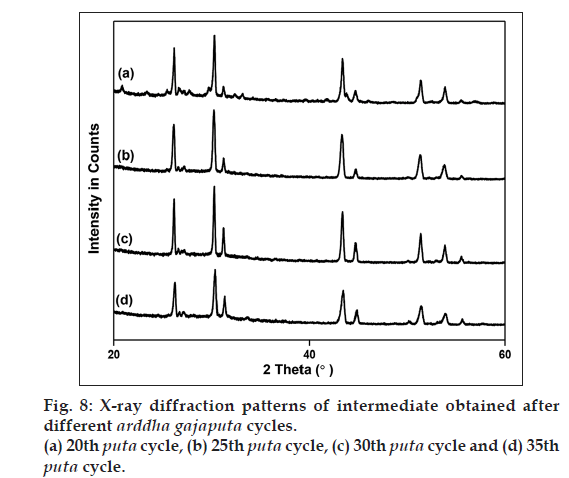

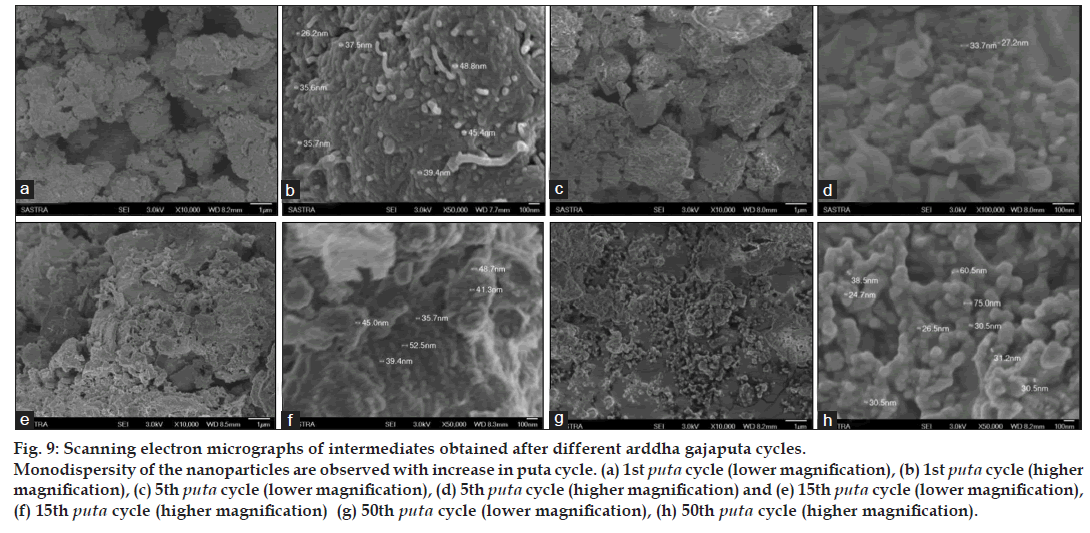

Fig. 8 shows the powder X-ray diffractogram obtained after different Arddha gajaputa cycles. It was observed that the intermediates were crystalline PbS and with increase in arddha gajaputa cycle, there was increase in degree of crystallinity. Fig. 9 shows the morphology of the intermediates obtained after different arddha gajaputa cycles exhibiting nanoscale features. The average size of the nanoparticles was observed to decrease, accompanied by an increase in monodispersity during subsequent arddha gajaputa cycles. Some of our results are in qualitative agreement with those reported in literature for preparation of naga bhasma [7,21]. Comparison of characteristics of intermediates could not be carried out due to lack of such information in earlier works. The existing bhasma preparation techniques follow different procedures for Naga bhasma and the protocol may differ in terms of raw materials utilised, variety of plants used and number of calcination cycles performed [7,13,21]. The present study has followed the standard preparation protocol mentioned in Ayurvedic Formulary of India and scientifically validated the steps involved in the preparation [14].

In conclusion, it is evident from the present study that the treatment of raw material (crude metallic lead) with various treating liquids removes heavy metals such as lead, iron, molybdenum, copper and aluminium through chelation, apart from causing substantial changes in morphology. In addition, sodhana (purification) steps improve the processability of lead facilitating further treatment. Initial preparation of jarita naga (PbO) from naga (Pb) enables the conversion of lead to PbS through the formation of intermediate (PbO). The use of realgar during arddha gajaputa cycles enables the conversion of PbO to PbS along with elimination of arsenic as arsenic oxide vapours. Calcination steps play a predominant role in attaining monodispersity of the bhasma particles. Each steps of the preparation should be done with utmost care to get the good quality of bhasma. It is also important to understand each and every step to set up the gold standards for bhasma preparation. This work has resulted in better understanding of the preparation protocol through chemical, crystallographic and morphological characterisation of intermediates. The role of herbal ingredients (Tamarindus indica and Ficus religiosa) in ensuring the transformation of Pb to PbO (lower oxidation state of Pb) has also been elucidated.
