V. D. Barhate and Priya Deosthalee*
Department of Chemistry, V. E. S College of Arts, Science and Commerce, Chembur, Mumbai - 400 071, India

Corresponding Author:
Priya Deosthalee
Department of Chemistry, V. E. S College of Arts, Science and Commerce, Chembur, Mumbai - 400 071, India
E-mail: inspire.research@gmail.com
Date of Submission 10 August 2009
Date of Revision 20 February 2010
Date of Acceptance 25 May 2010
Indian J Pharm Sci, 2010, 72 (3): 401-404

DOI: 10.4103/0250-474X.70496

Abstract

A forced degradation study on roflumilast drug substance was conducted under the conditions of hydrolysis, oxidation, thermal and photolysis. The method was developed and optimized by analyzing forcefully degraded samples. The best separation was achieved on a Zorbax SB C18 1.8 Î…m column with 0.005 M ammonium formate buffer pH 3.5 and acetonitrile as mobile phase in a 13 min run time. The proposed method was able to resolve all the possible degradation products formed during stress study. The drug was stable to neutral, thermal and photolytic conditions but unstable to acidic, alkaline and oxidative conditions at 80Ί for 24 h. The degradation products resulting from stress study did not interfere in assay and related substances of roflumilast and thus the method can be regarded as stability indicating. An alternate method was also developed on a conventional 250Χ4.6 mm, 5 Î…m column wherein runtime was 38 min. Thus rapid resolution high throughput column was able to reduce the run time from 38 min to 13 min.

Keywords

Forced degradation, liquid chromatography, rofl umilast, RRHT

Roflumilast is a novel, potent, selective phosphodiesterase 4 (PDE4) inhibitor for the treatment of chronic obstructive pulmonary disease (COPD) and asthma (fig. 1). Its empirical formula is C17H14Cl2F2N2O3 and its molecular weight is 403.21. There is no reported method for the analysis of rofl umilast in the presence of its degradation products. In the absence of an offi cial rofl umilast monograph in the pharmacopoeias, including the European Pharmacopoeia, British Pharmacopoeia and United States Pharmacopoeia, development of such a method would prove useful for the industry. The objective of this work was, to develop a simple, economic and rapid HPLC method for the quantitative analysis of rofl umilast.

Figure

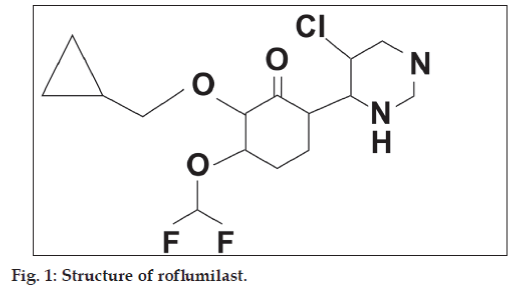

Figure 1: Structure of rofl umilast.

Roflumilast was received as a gift sample from MSN laboratories limited. Acetonitrile and methanol both (Merck) were of HPLC grade. GR grade ammonium acetate, monobasic sodium monophosphate monohydrate, dibasic sodium phosphate anhydrous, hydrochloric acid, acetic acid glacial, formic acid, ortho phosphoric acid and sodium hydroxide pellets were all procured from Merck India limited. Ammonium hydrogen carbonate and hydrogen peroxide 30%w/v were of (Qualigens) ExcelR and SQ grade, respectively. Ammonium formate was of 99.995+% pure (Sigma Aldrich). HPLC grade water was obtained through milli Q water purifi cation system.

The LC system used for method development and forced degradation studies was Agilent 1100 series liquid chromatographic RRHT (Rapid Resolution High Throughput) system comprising of binary pumps, column oven, autosampler and diode array detector. Data acquisition and processing was carried out using Chemstation software.

The chromatographic separation was achieved using gradient elution (Table 1) consisting of 0.005 M ammonium formate buffer pH 3.5 and acetonitrile on a Zorbax SB C18 50×4.6 mm, 1.8 μm column. Flow rate was maintained as 0.5 ml/min. The column was thermostated at 25º and the injection volume was 3 μl. The UV wavelength of detection used was 215 nm. Roflumilast solution of concentration 150 μg/ ml was prepared in acetonitrile and chromatogram is depicted in fig. 2. Rofl umilast was stressed under different conditions to promote degradation [1,2]. Solutions of the rofl umilast in acidic, neutral, alkaline and oxidative media were prepared and subjected to forced degradation.

Time (min) Aqueous phase (%) Acetonitrile (%)
0 90 10
3 47 53
5 43 57
7 40 60
9 10 90
10 10 90
11 90 10
13 90 10

Table 1: Gradient elution program

Figure

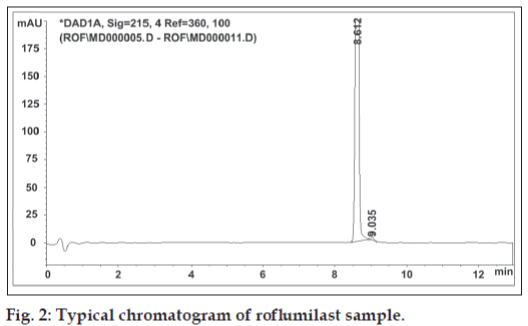

Figure 2: Typical chromatogram of rofl umilast sample.

Solution for hydrolytic degradation was prepared by weighing accurately about 15 mg of rofl umilast in different 20 ml volumetric flasks. Roflumilast was dissolved in 1 ml of acetonitrile and kept in hot air oven for 24 h at 80º after adding 5 ml of 0.1 N HCl for acid hydrolysis, 5 ml of 0.1 N NaOH for base hydrolysis, 5 ml of water for neutral hydrolysis, individually. After heating, acid hydrolysis solution was neutralized with 0.1 N NaOH and base hydrolysis solution was neutralized with 0.1 N HCl.

Solution for oxidative degradation was prepared by weighing accurately about 15 mg of roflumilast in a 20 ml volumetric flask and dissolving in 1 ml of acetonitrile. The flask was kept in hot air oven for 24 h at 80º after adding 5 ml of 30% hydrogen peroxide. The chromatograms for alkaline, acidic and oxidative degradation are depicted in fig. 3, fig. 4 and fig. 5, respectively.

Figure

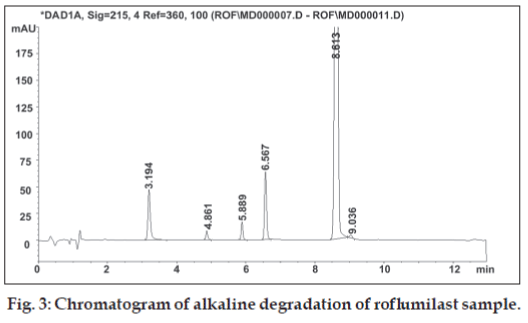

Figure 3: Chromatogram of alkaline degradation of rofl umilast sample.

Figure

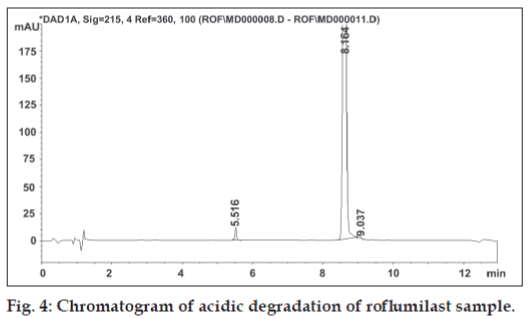

Figure 4: Chromatogram of acidic degradation of rofl umilast sample.

Figure

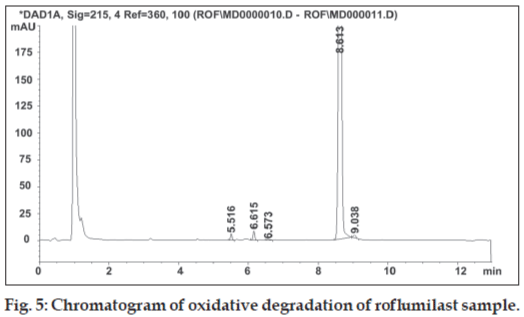

Figure 5: Chromatogram of oxidative degradation of rofl umilast sample.

To study the effect of thermal stress, rofl umilast was exposed to dry heat at 80º in a hot air oven for 24 h. Photostability of rofl umilast was checked by exposing to UV light in the solid state [3]. Roflumilast was exposed to ≥200 W h m-2 UV irradiation at 320-400 nm, at 25º for 75 h. Each stressed sample was diluted with acetonitrile to achieve concentration of 150 μg/ ml of rofl umilast.

The maximum absorption wavelength of rofl umilast solution and forcefully degraded drug solution was found to be 212 nm through their UV absorption spectra and hence, 215 nm was selected as detection wavelength for LC analysis.

Method development was done using conventional 250 mm column and a RRHT 50 mm, 1.8 μm column. A forced degraded solution of roflumilast was chromatographed on column packed with 5 μm reversed-phase C18 bonded stationary phase. Run time for gradient method was 38 min and rofl umilast eluted at 18.6 min. HPLC run time was too long hence further method development was done using RRHT columns.

A mobile phase consisting of 0.1% formic acid and acetonitrile using gradient elution fl owing at a rate of 0.5 ml/min was tried on 1.8 μm 50×4.6 mm RRHT columns [4]. Columns tried were, Zorbax Eclipse plus, Zorbax Extend C18, Zorbax XDB C18 and Zorbax SB C18. Better separation was achieved on Zorbax SB C18 50×4.6 mm, 1.8 μm as compared to other columns hence further experimentation was done using this column.

Replacement of acetonitrile by methanol resulted in merging of two degradation peaks observed in alkaline degradation of roflumilast. A gradient run using 0.1% formic acid and acetonitrile with organic concentration varying from 10 to 90% of aqueous phase over 20 min eluted the rofl umilast at 11.1 min. The gradient run was modifi ed to have short run time of 13 min. Other buffers of 0.005 M strength tried were ammonium formate pH 3.5, phosphate buffer pH 2.4 [5], mixed phosphate buffer pH 6.6 [5], ammonium acetate buffer pH 5 and ammonium bicarbonate buffer pH 7. Aqueous phase of 0.1% formic acid solution was too low in buffer capacity hence not considered for further method development process. Change in aqueous phase exerted imperceptible effect on retention time and peak shape of roflumilast. Comparison of various aqueous phases is shown in Table 2. Mobile phase pH from 2.4 to 7 did not have any influence on the retention time of roflumilast. Ammonium formate buffer pH 3.5 was preferred over other buffers due to less interference and its volatile nature as this can also be used for a LCMS method. The forced degradation behaviour of rofl umilast under different forced degradation conditions is summarized in Table 3. Stress testing showed that all degradation products were well separated from roflumilast, confi rming its stability-indicating capability.

Aqueous phase pH Retention time of roflumilast (min) Comments
Phosphate 2.4 8.75 Interference in
buffer     blank
Ammonium 3.5 8.6 Good separation
formate     between all
      degradation peaks
      androflumilast.
Ammonium 5.0 8.33 Close elution of
acetate     two degradation
      peaks in alkaline
      condition.
Mixed 6.6 8.27 Good separation
phosphate     between all
      degradation peaks
      androflumilast.
      But not suitable
      for LCMS.
Ammonium 7.0 8.31 Interference in
bicarbonate     blank

Table 2: Aqueous phase comparison

Condition Time (h) Temp (º) % degradation Area % of major degradation products
      (RRT) → 0.37 0.56 0.64 0.68 0.72 0.76 1.05
Initial 0 25 0.62 - - - - - - 0.62
0.1 N HCl 24 80 1.84 - - 1.26 - - - 0.58
Water 24 80 0.63 - - - - - - 0.63
0.1 N NaOH 24 80 18.4 7.02 0.91 - 1.71 - 8.21 0.55
30% H2O2 24 80 2.55 - - 0.67 - 1.1 0.11 0.67
Thermal 24 80 0.62 - - - - - - 0.62
UV light 75 25 0.61 - - - - - - 0.61

Table 3: Forced degradation behavior of roflumilast.

All stressed samples, both solid and in solution, remained colourless. Forced degradation results prove that roflumilast is stable under neutral condition while in 0.1 N hydrochloric acid it shows low degradation. The rate of hydrolysis of rofl umilast was found to accelerate in alkaline condition resulting in 18.4% degradation. Under oxidative condition, rofl umilast shows three unknown impurities having major impurity of 1.1% at RRT 0.72. The drug was stable to thermal and photodegradation as indicated by no increase in the area of impurity peak.

A simple, economic and rapid HPLC analytical method with UV detection has been developed for the determination of rofl umilast active pharmaceutical ingredient using a Zorbax SB C18 50 mm × 4.6 mm column with 1.8 μm particle size. The low run time of 13 min enables rapid determination of the drug, which is important for the routine analysis. A method was also developed on a conventional C18 250×4.6 mm column wherein run time was 38 min.

The method seems to be suitable for the quality control in the pharmaceutical industry because of its sensitivity, simplicity, selectivity and short run time. Time required for the analysis of 50 injections using 38 min run time method on 250×4.6 mm column will be approximately 31.6 h. The same analysis can be completed in 11 h using 13 min run time method on 50×4.6 mm column packed with 1.8 μm particles excluding column equilibration time for both the columns. This indicates use of 1.8 μm short column offers several advantages such as low run time, higher productivity and low solvent consumption resulting in cost reduction and being environment friendly.
