*Corresponding Author:
M. Dikmen
Clinical Pharmacy Eskişehir,Anadolu University, Eskişehir-26470, Turkey
E-mail: mirisd@anadolu.edu.tr
Date of Submission 28 June 2016
Date of Revision 02 November 2016
Date of Acceptance 04 January 2017
Indian J Pharm Sci 2017;79(1): 49-57

This is an open access article distributed under the terms of the Creative Commons Attribution-NonCommercial-ShareAlike 3.0 License, which allows others to remix, tweak, and build upon the work non-commercially, as long as the author is credited and the new creations are licensed under the identical terms

Abstract

Development of resistance to standard therapy and toxic side effects are the major challenges encountered in chemotherapy of colorectal cancer. Increasing evidence has shown the ability of natural products to overcome various challenging disorders. Since the development of antibiotics, fungi have been shown to be a wide useful source of lead compounds for the development of new pharmaceuticals. Fungal secondary metabolites from extreme environments are remarkable due to their diverse components, which makes them interesting candidates for drug discovery. In order to discover novel active antimetastatic and antiangiogenic compounds, secondary metabolites of halotolerant Penicillium chrysogenum-1(hPc-1) isolated from Tuz Lake in Turkey and ethylacetate extract of hPc-1 was prepared from the isolate of hPc-1 culture medium. Firstly, antioxidant activity of the extract was determined. Then cytotoxicity and cell proliferation were investigated by WST-1 assay and real-time cell analysis system-DP on human umbilical vein endothelial cells and colorectal carcinoma cells, respectively. Antiangiogenic effects on human umbilical vein endothelial cells were evaluated with cell migration and invasion assays by using real-time cell analysis system. Also mRNA expression levels of metastasis and angiogenesis related genes, VEGFA, VEGFB, EGFR, COX-10, ANGPT-1 and IL-8 were determined on both cell lines. Results indicated that hPc-1 extract exhibited significant antimetastatic and antiangiogenic effects. According to the real-time cell analysis system results, IC50 concentrations of hPc-1 extract on Caco2 and human umbilical vein endothelial cells were calculated as 55.2 and 37.89 µg/ml, respectively for 72 h. These results indicated that the secondary metabolites of hPc-1 extract could have the potential as a preventive and therapeutic agent in metastatic cancer processes.

Keywords

Halotolerant, antiangiogenesis, antimetastatic, Penicillium chrysogenum

Colorectal cancer (CRC) is the third most prevalent cancer in the world. The main treatment strategies, including 5-fluorouracil, new angiogenesis inhibitors, and epidermal growth factor receptor (EGFR) inhibitors, result with poor response in most advanced stages and are usually followed by other tissue damages [1]. Angiogenesis is the sprouting of new blood vessels from pre-existing vessels and is strongly involved in solid tumour formation because it is essential for growth and metastasis of malignant tumours. Tumour angiogenesis is the consequence of an angiogenic imbalance in which proangiogenic factors prevail antiangiogenic factors [2].

Despite the fact that chemotherapy is fundamental to the clinical management of cancer, failure in chemotherapy is not uncommon, mainly due to the dose-limiting toxicities and provoking severe adverse reactions in human beings. In spite of the extensive progress in chemotherapy over the last decade, there is still a need for discovery and development of alternative or adjuvant therapeutic agents. In the realm of drug discovery, natural products provide a vast pool for screening for new antiangiogenic and antitumor agents including candidate compounds to overcome cancer and also low-toxic anticancer agents from fungi has become one of the research subjects in the current pharmacy field [3,4].

In recent years, fungi from extreme environments have attracted considerable attention. Salt lakes and solar salterns are unique hyper saline environments, characterized by their high salt concentration and alkaline pH [5]. Tuz Lake is an inland hyper saline water body (salinity above 30% NaCl) and is the second largest lake of Turkey with a length of 90 km, a width of 35 km and a total surface of 1665 km2 within a closed basin which is located in the Central Anatolia Region, Konya [6]. Hyper saline environments have been considered to be populated almost completely by prokaryotic organisms for a long time and fungi that can survive in environments with low water activity were discovered recently. Fungal secondary metabolites from extreme environments are remarkable due to their diverse components, which makes them interesting candidates for drug discovery.

In this study, antimetastatic and antiangiogenic effects of the secondary metabolites of halotolerant Penicillium chrysogenum isolated from Tuz Lake were investigated with various pharmacological methods. Thus, we aimed to bring different perspective for fungi secondary metabolites, an excellent potential source of new natural products, isolated from extreme environments.

Materials and Methods

Microorganism culture conditions and preparation of ethyl acetate extraction

Halotolerant P. chrysogenum-1 (HP-1) was isolated from one of the biggest lakes in Turkey, Tuz Lake, located in the Central Anatolia Region. The stock culture of HP-1 was grown on the slant of malt extract agar (MEA) and maintained at 25° in an incubator. The isolates were incubated in static conditions in an antioxidant liquid medium at 27° for 7 d. After the incubation period, the isolates were filtered with Whatman no. 1 paper to be separated from micelles. Collected supernatant was extracted with ethyl acetate at 1:1 rate for 3 times. The organic phase was intensified by evaporating in rotavapor (Heidolph, Germany). Also, identification of HP-1 was conducted with classical methods earlier [7]. Antioxidant activity was determined higher than positive control butylated hydroxytoluene (BHT). Fungal ethyl acetate extract was dissolved in dimethyl sulfoxide (DMSO) and diluted to working concentrations with fresh medium. Control group (solvent control) was prepared with medium containing 0.1% DMSO.

Cell culture

Human umbilical vein endothelial cells (HUVECs, ATCC number CRL-130TM) and human CRC (Caco-2, ATCC number HTB-37™) cells were obtained from American Type Culture Collection (ATCC). HUVECs were cultured in 2 mM L-glutamine, 0.1 mg/ml heparin, 1.5 g/l NaHCO3 (sodium bicarbonate), 0.03 mg/ml endothelial cell growth factor and 10% FBS containing F12K medium. Caco-2 cells were grown in RPMI 1640 medium supplemented with 2 mM L-glutamine, 10% foetal bovine serum and 1% penicillin/streptomycin at 37° in a humidified incubator with 5% CO2.

WST-1 cytotoxicity assay

Cytotoxicity was measured using a colorimetric assay for 96-well plates with 2-(4-iodophenyl)-3-(4- nitrophenyl)-5-(2,4-disulfophenyl)-2H-tetrazolium monosodium salt, the WST-1 assay. In this method, the reduced tetrazolium salt was water soluble [8]. HUVEC and Caco-2 cells were seeded in 96-well plates at a density of 5×103 cells per well. After 24 h, different HP-1 concentrations (25, 50, 100, 200 and 400 μg/ ml for HUVEC; 50, 100, 150, 200, 300 and 400 μg/ ml for Caco-2 cells) were added to wells. Plates were incubated for 24 or 48 h. After incubation periods, 10 μl WST-1 solutions were added to each well and incubated for 3 h. The absorbance was measured at 420 nm using a cytation 3 cell ımaging multi-mode reader (Bio-Tek) according to the WST-1 kit protocol (Cat. no:11644807001, Roche). Cell survival rates were expressed as the percentage of the DMSO (0.1%) solvent control. The measured absorbance directly correlates with the number of viable cells.

Cell proliferation assay with real-time cell analysis system (RTCA DP)

Kinetics of cell proliferation were monitored with xCELLigence RTCA DP instrument which measures electrical impedance across interdigitated microelectrodes incorporated on the bottom of tissue culture E-Plates. Electrical impedance indicated as cell index (CI) value and provides quantitative information about the condition of the cells, involving cell number, viability, and morphology [9].

Background of the E-plates (16 well) were measured in 100 μl medium in the RTCA DP station. Afterwards 100 μl of a HUVEC and Caco-2 cell suspensions was added (20 000 cells/well). Plates were incubated for 30 min at room temperature and E-plates were placed into the instrument and impedance was measured at 1 h intervals. Approximately 20 h after seeding, when the cells were in the log growth phase, the instrument was paused and the cells were treated with 100 μl of medium containing different concentrations of HP-1 ethyl acetate extract (25, 50, 100, 200 and 400 μg/ml) and fumagillin control group (100 μM) impedance monitoring continued for another 72 h. Dose-response curves at 72 h were generated in order to determine IC50 values during the incubation time. The electrical impedance was analysed by the RTCA-connected software of the RTCA DP system as a dimensionless parameter called CI.

Cell migration and invasion assays with real-time cell analysis system

Cell migration and invasion assays were conducted with RTCA DP by using CIM-16 plates that contains microelectronic sensors connected onto the underside of the plate [10]. For invasion assay, top part wells of the CIM-16 plate were coated with 20 μl of 20% matrigel and incubated at 37°, 5% CO2 for 4 h before the experiment. And then for both migration and invasion assays, the wells of the bottom chamber were filled with 160 μl of 10% serum containing growth F12K medium and the top and bottom parts of the CIM-16 plates were assembled together. After the addition of 20 μl serum-free F12K medium to the top chamber wells, the assembled CIM-Plates 16 were allowed to stabilize for 1 h at the incubator. After the incubation, HUVEC cells were seeded at a 2×104 density per well onto the top chambers of CIM-16 plates in 80 μl of serum-free media, then 100 μl of HP-1 extract concentrations (25, 50, 200 μg/ml) were added. After stabilizing CIM-plates for 30 min at room temperature, the chamber was loaded in the RTCA DP machine and software was set to collect impendence data, reported as CI values, once every 10 min for 24 h [9,11].

Morphological migration analysis

Antimigratory effects of the extract on HUVEC cells were investigated by using The Oris™ Cell Migration Assay kit (Platypus Technologies, LLC., Madison, WI). Briefly, cells were collected in growth medium at 5×104 cells/ml and, 100 μl of the cell suspension was added to each well of the Oris plate. After 24 h incubation at 37° in a 5% CO2 incubator, the stoppers and then current medium were removed carefully from the Oris plate. A total of 100 μl of IC50 concentration of the extract (37, 89 μg/ml) and 0.1% DMSO containing control group were added to wells and incubated for another 24 h. At the end of the incubation period each well was stained with 10 μl blue fluorescent Hoechst 33258, for 5 min and images were captured and absorbance’s were measured in cytation 3 cell imaging multi-mode reader (Bio-Tek) using the blue filter cube.

mRNA expression levels of angiogenesis-related genes

For RNA isolation, Caco-2 and HUVEC cells were seeded at 5×105 density per well in growth medium on 6-well plate. After 24 h, cells were treated with IC50 concentration of the extract (3789 μg/ml). After 24 h, cells were scratched and total RNA isolation was conducted by following the Magna Pure Compact protocol for the Magna Pure Compact RNA Isolation Kit on Magna Pure LC 2.0 system. The high quality of the RNA samples was confirmed by using the NanoDrop Instrument at 260 and 280 nm optical densities. From each RNA population, 500 ng total RNA was used for cDNA synthesis with the Transcriptor High Fidelity cDNA Synthesis Kit (Cat.No.:05091284001, Roche) and reverse transcription reactions were performed according to the kit procedure. The quality of the cDNA samples were also confirmed with the NanoDrop instrument.

The resulting total cDNA was used in quantitative real time-polymerase chain reaction (qRT-PCR) to measure angiogenesis related VEGFA, VEGFB, EGFR, COX-10, ANGPT-1 and IL-8 genes mRNA expression levels. The RT-PCR mixture contained 10 μl 2X LightCycler® 480 Probes Master, 1 μl of each primer (Roche RealTime Ready Focus Gene Panel for angiogenesis, Ref. no.: 05582610001) 4 μl PCR grade water and 5 μl of cDNA. The primer sequences and cycling conditions are shown in Tables 1 and 2. The mRNA levels of glyceraldehyde 3-phosphate dehydrogenase (GAPDH) were used as internal positive control. A qPCR using the Universal ProbeLibrary detection format was performed on the LightCycler® 480 Instrument to quantify gene expression. Results were analysed by advanced relative quantification with the instrument’s software 1.5.0 SP4 (version 1.5.0.39).

Primer Forward sequence Reverse sequence
VEGFA 5’-GCAAGACAAGAAAAATGTGACAA-3’ 5’-TGGTTTCTGTATCGATCGTTCT-3’
VEGFB 5’-CTGGCCACCAGAGGAAAGT-3’ 5’-CATGAGCTCCACAGTCAAGG-3’
EGFR 5’-CAGCCACCCATATGTACCATC-3’ 5’-AACTTTGGGCGACTATCTGC-3’
COX-10 5’-CGTAAATTATGGCCGCATCT-3’ 5’-GACAGAGCCTCCTACGCAAC-3’
ANGPT1 5’-AGCTACCACCAACAACAGTG-3’ 5’-CAAAGATTGACAAGGTTGTGG-3’
IL-8 5’-TAGCCAGGATCCACAAGTCC-3’ 5’-CTGTGAGGTAAGATGGTGGCTA-3’
GAPDH 5’-CTCTGCTCCTCCTGTTCGAC-3’ 5’-ACGACCAAATCCGTTGACTC-3’

Table 1: Primer Sequences of Angiogenesis and Metastasis Related Genes

RT-PCR cycling conditions
Step Heat Duration Cycle
Incubation 95° 10 min 1
Amplification 95° 10 s   45
  60° 30 s
  72° 1 s
Cooling 40° 30 s 1

Table 2: RT-PCR Cycling Conditions

Statistical analysis

Graphics were drawn with GraphPad Prism 6.0 software (GraphPad Software Inc., San Diego California USA) and statistically analysed with one way analysis of varience (ANOVA) and Tukey’s post hoc test. Results are expressed as mean±standard deviation and the means of 3 independent experiments (n=8 for WST- 1; n=3 for morphological migration analysis), P<0.001 was considered to be significant compared to control group.

Results and Discussion

Cytotoxic effects of HP-1 extract on HUVEC and Caco-2 cells, in order to evaluate the cytotoxic effects of the extract on HUVEC and Caco-2 cells, a WST- 1 assay was performed with different concentrations. As mentioned before, WST-1 is metabolized by cellular NAD-dependent dehydrogenase into the coloured product of WST-1, formazan. The amount of dye correlates with the number of viable cells. According to our results, both HUVEC and Caco- 2 cell viability were significantly decreased by HP-1 secondary metabolites (P<0.001, Figure 1). WST-1 results were used as a preliminary screening for RTCA-DP concentrations.

IJPS-Cytotoxic-effects

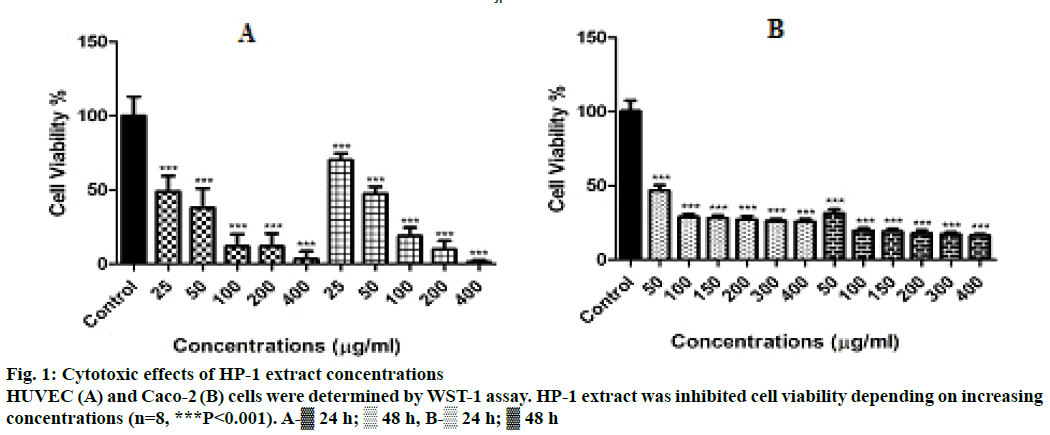

Figure 1: Cytotoxic effects of HP-1 extract concentrations HUVEC (A) and Caco-2 (B) cells were determined by WST-1 assay. HP-1 extract was inhibited cell viability depending on increasing concentrations (n=8, ***P<0.001). A-image 24 h; image 48 h, B-image 24 h; image 48 h

In order to evaluate the effects of HP-1 extract secondary metabolites on cell proliferation of HUVEC and Caco-2 cells and calculate IC50 concentrations for following experiments, cell proliferation analysis were conducted with RTCA DP system. According to our results, IC50 concentrations of HP-1 extract for Caco- 2 and HUVEC were calculated as 55.2 and 37.89 μg/ ml for 24 h, respectively (Figures 2 and 3). In addition, fumagillin was used as positive control in order to compare the anticancer effect of the extract and we found that HP-1 extract decreased Caco-2 cell viability more than fumagillin concentration (100 μM).

IJPS-Real-time-monitoring

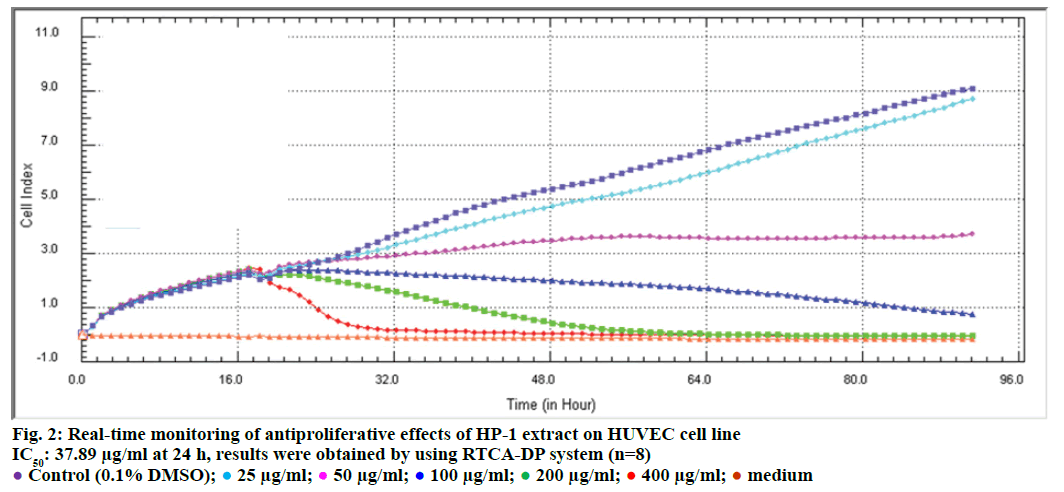

Figure 2: Real-time monitoring of antiproliferative effects of HP-1 extract on HUVEC cell line IC50: 37.89 μg/ml at 24 h, results were obtained by using RTCA-DP system (n=8)
image Control (0.1% DMSO); image 25 μg/ml; image 50 μg/ml; image 100 μg/ml; image 200 μg/ml; image 400 μg/ml; image medium

IJPS-antiproliferative-effects

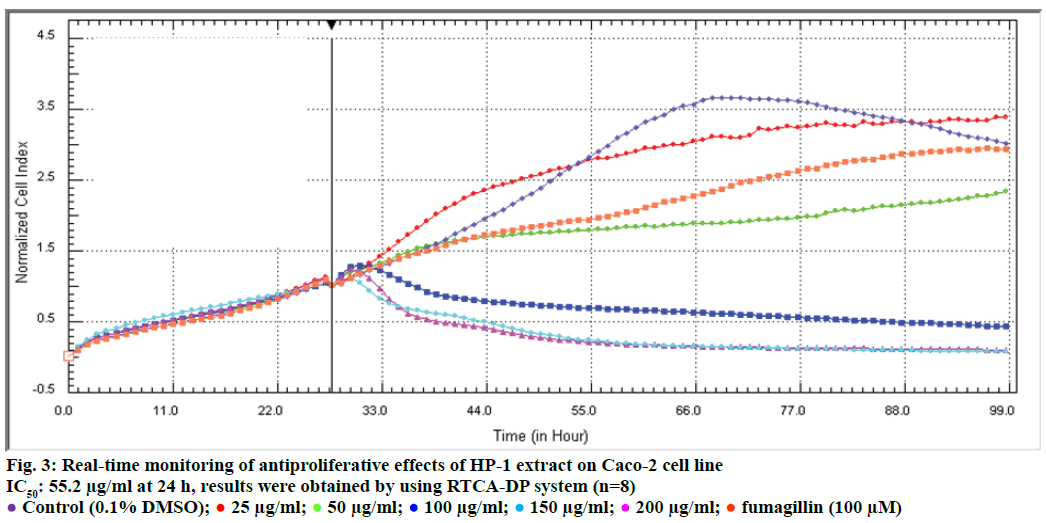

Figure 3: Real-time monitoring of antiproliferative effects of HP-1 extract on Caco-2 cell line
IC50: 55.2 μg/ml at 24 h, results were obtained by using RTCA-DP system (n=8)
image Control (0.1% DMSO); image 25 μg/ml; image 50 μg/ml; image 100 μg/ml; image 150 μg/ml; image 200 μg/ml; image fumagillin (100 μM)

Endothelial cell migration and invasion are important steps of angiogenesis. In order to evaluate the effects of HP-1 extract secondary metabolites on angiogenesis, real-time cell migration and invasion assays were performed with RTCA DP system on HUVEC cells, The analysis was conducted with high (200 μg/ml), medium (50 μg/ml) and low (25 μg/ml) concentration range including IC50 value which was predetermined 37.89 μg/ml (Figures 4 and 5). Both cell migration and invasion were decreased depending on the increasing concentrations of the extract. Especially, 200 μg/ ml extract concentration highly supressed migration and invasion. In parallel to RTCA-DP analysis and according to Oris™ cell migration result, HUVEC cell migration has decreased by 28.43% at IC50 extract concentration (37.89 μg/ml) compared to control (Figure 6).

IJPS-Inhibitory-effects

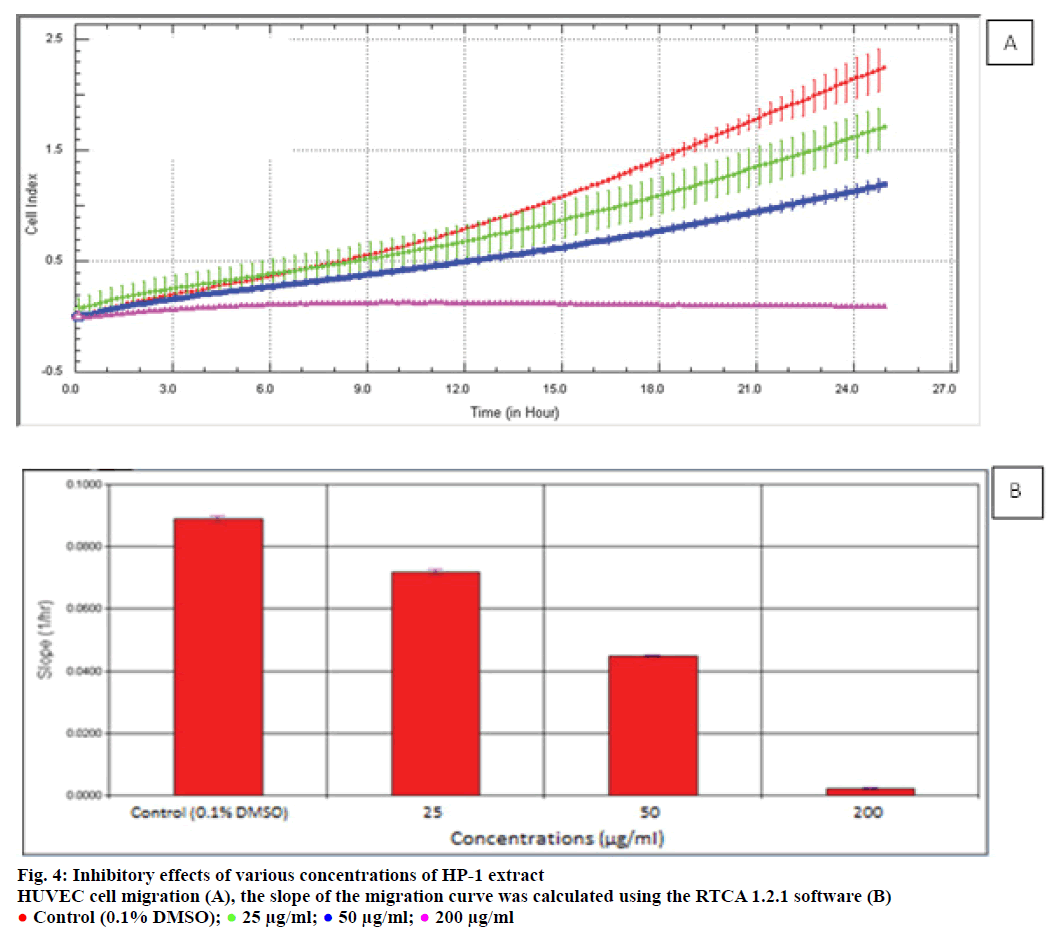

Figure 4: Inhibitory effects of various concentrations of HP-1 extract
HUVEC cell migration (A), the slope of the migration curve was calculated using the RTCA 1.2.1 software (B)
image Control (0.1% DMSO); image 25 μg/ml; image 50 μg/ml; image 200 μg/ml

IJPS-slope-invasion-curve

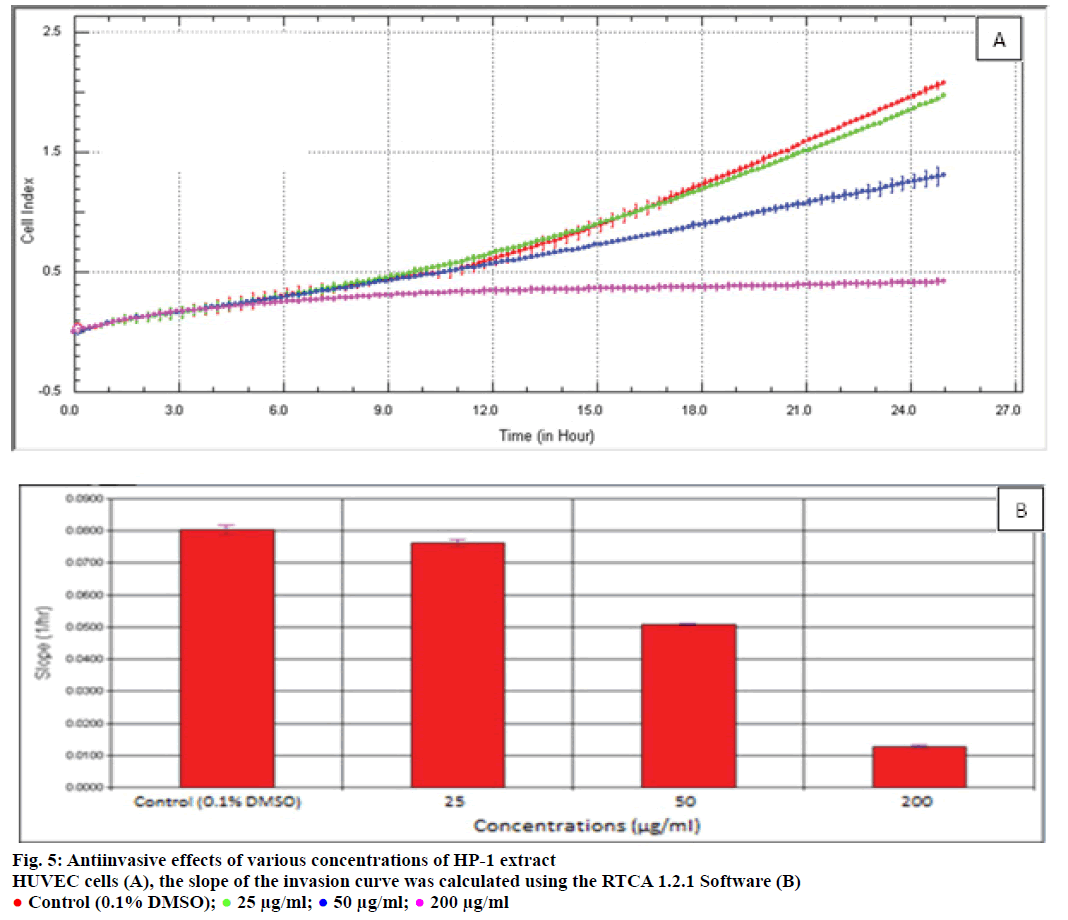

Figure 5: Antiinvasive effects of various concentrations of HP-1 extract
HUVEC cells (A), the slope of the invasion curve was calculated using the RTCA 1.2.1 Software (B)
image Control (0.1% DMSO); image 25 μg/ml; image 50 μg/ml; image 200 μg/ml

IJPS-Morphological-migration-analysis

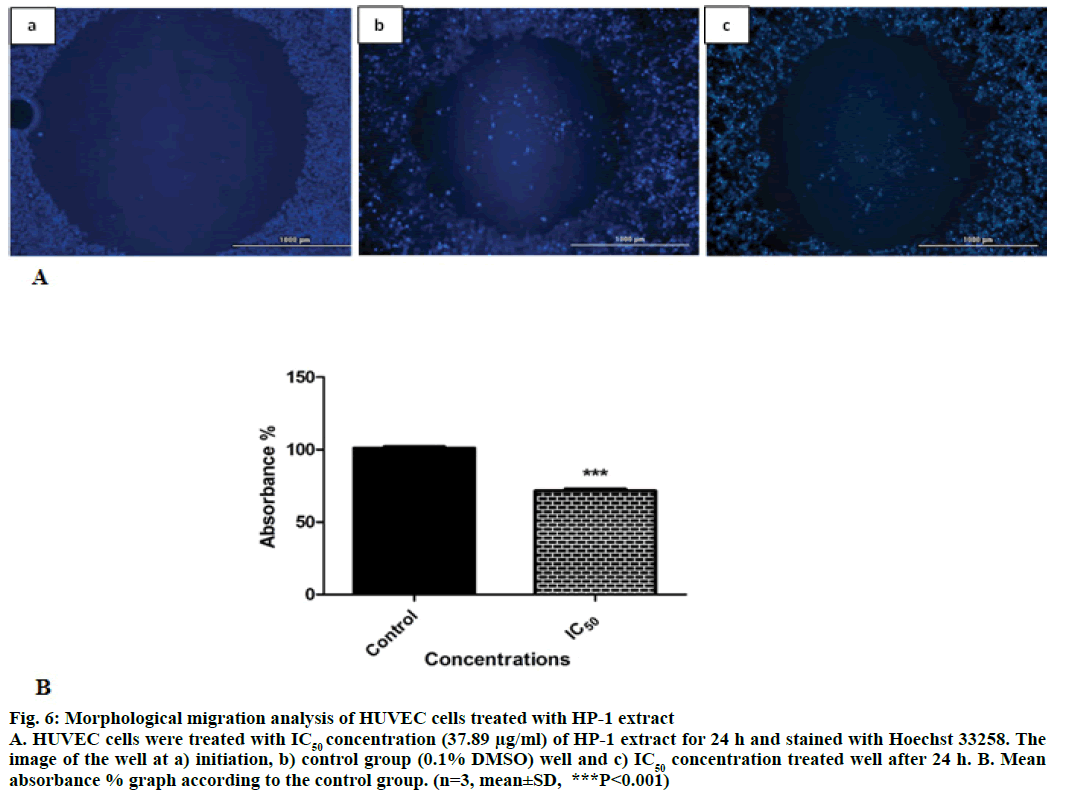

Figure 6: Morphological migration analysis of HUVEC cells treated with HP-1 extract
A. HUVEC cells were treated with IC50 concentration (37.89 μg/ml) of HP-1 extract for 24 h and stained with Hoechst 33258. The image of the well at a) initiation, b) control group (0.1% DMSO) well and c) IC50 concentration treated well after 24 h. B. Mean
absorbance % graph according to the control group. (n=3, mean±SD, ***P<0.001)

Both HUVEC and Caco-2 cells were incubated with IC50 concentrations, 37.89 μg/ml and 55.2 μg/ml respectively, for 24 h and mRNA expression levels of angiogenesis and metastasis related VEGF A, VEGF B, EGFR, COX-10, ANGPT-1 and IL-8 genes were determined by qRT-PCR method. According to our results, expression levels decreased 39.53, 64.86, 48.16, 51.65, 80.56, 78.40% for Caco-2 cells and 45.86, 9.15, 31.12, 21.29, 60.82, 39.21% for HUVEC cells respectively (Figure 7).

IJPS-expression-levels-angiogenesis

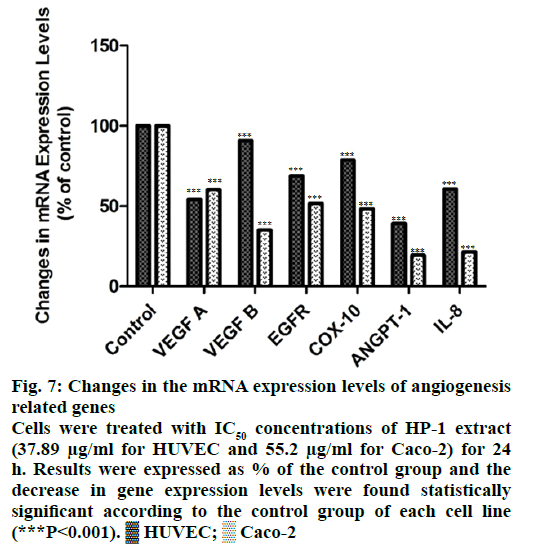

Figure 7: Changes in the mRNA expression levels of angiogenesis related genes Cells were treated with IC50 concentrations of HP-1 extract (37.89 μg/ml for HUVEC and 55.2 μg/ml for Caco-2) for 24 h. Results were expressed as % of the control group and the decrease in gene expression levels were found statistically significant according to the control group of each cell line (***P<0.001). image HUVEC; image Caco-2

Studies over the past 30 y have provided significant insights about angiogenic process and its role in cancer pathology; angiogenesis is a hallmark of cancer that enables tumour growth. Vascular endothelial growth factors are key players in the process of tumour angiogenesis, and the VEGF pathway has therefore been an important focus for anticancer drug development [12]. After the first VEGF-targeted agent, the antiVEGF monoclonal antibody bevacizumab (Avastin, Genentech), showing clinical benefit in patients with metastatic CRC when combined with chemotherapy, the studies about angiogenic process has continued to increase [13]. However, 40-60% of tumours progressed after initially successful treatment because of the development of resistance to antiangiogenic therapy, a state exhibiting a poor prognosis and response to available treatments [14], with heightened invasiveness and in some cases increased lymphatic and distant metastasis [15]. Therefore, there is a need for new antiangiogenic and also antimetastatic compounds in CRC therapy.

Fungi represent a large group of eukaryotic organisms on earth and serve as biofactories for several bioactive compounds. Secondary metabolites are low-molecular weight bioactive natural products and essential for growth and survival functions of fungi [16]. Hyper saline environments originated by the evaporation of water and precipitation of the sodium chloride (NaCl) eventually increases the salinity [17]. Fungi from hyper saline environments adapt to high salt condition with its antioxidant capacity [18].

Largely, hyper saline fungal communities are dominated by Aspergillus and Penicillium species [19]. In this study, we investigated the antimetastatic and antiangiogenic effects of halotolerant HP-1 extract secondary metabolites with high antioxidant capacity and isolated from Tuz Lake, a big salt lake in Turkey. Ethyl acetate extract showed significant cytotoxic and antiproliferative effects with IC50 concentrations (55.2 μg/ml for Caco-2 and 37.89 μg/ml for HUVEC). Especially, HP-1 secondary metabolites decreased Caco-2 cell viability more than fumagillin, which is a potent fungal metabolite first isolated from Aspergillus fumigatus and widely used in a variety of microsporidian fungal infections and it has been researching for cancer treatments because of its angiogenesis inhibitory properties [20]. Antiangiogenic properties of the extract were demonstrated with HUVEC cell migration and invasion analysis which resulted with significant decrease, especially at 50 and 200 μg/ml concentrations.

In this study, we determined that mRNA expression levels of VEGF A, VEGF B, EGFR, COX-10, ANGPT-1 and IL-8 genes were decreased both HUVEC and Caco-2 cells according to control. This result supported that HP-1 extract have important antimetastatic and antiangiogenic effects.

EGFR is a receptor of tyrosine kinase that plays a critical role in the survival, proliferation, migration, angiogenesis, and apoptosis, and EGFR signalling dysregulation results with overexpression, amplification, and mutation of the EGFR gene occurs frequently in several types of epithelial cancers, including colon cancer [21]. With other oncogenes, EGFR activating mutations can indirectly lead to an upregulation of VEGF expression [22]. IL-8 is a member of the CXC chemokine family and overexpression of IL-8 has been found to be a critical VEGF-independent mediator of tumour-associated angiogenesis [23]. The importance of cyclooxygenases in CRC development and progression led to many studies and many observational studies have reported a 40-50% relative risk reduction of developing colorectal adenomas and cancer, when comparing regular users of aspirin or non-steroidal antiinflammatory drugs to non-users [24]. Angiopoietins are a new family of growth factors that are specific for the vascular endothelium has been recently identified and responsible for vasculogenesis. Transgenic overexpression of angiopoietin-1 could lead to striking hyper vascularization. Angiopoietins are expressed simultaneously in carcinoma cells. Therefore, angiopoietins may promote the growth of tumours in an autocrine or paracrine fashion [25].

In conclusion, this is the first evidence for the antiangiogenic effects on HUVEC cells and antimetastatic effects on Caco-2 cells of the HP-1 secondary metabolites isolated from Tuz Lake. These findings suggest that HP-1 secondary metabolites down regulated the mRNA expression levels of VEGF A, VEGF B, EGFR, COX-10, ANGPT-1 and IL-8 which are both angiogenesis and metastasis related genes based on the potential contribution of the antioxidant activity provided by the phenolic component of the extract. Secondary metabolites of halotolerant fungi, an excellent potential source of new natural products isolated from extreme environments like Tuz Lake may have potential in new drug development. Therefore, with further investigations on the active substance of the HP-1 extract, it might have an important role as a chemoprotective and antiangiogenic agent in the future.

Acknowledgements

This research was carried supported by Anadolu University Scientific Research Project Unit (Number of project: 1003S117).

Conflict of interest

There are no conflicts of interest.

Financial support and sponsorship

Nil.
