I. Farh, Nouf Alnajim, A. Alossimi, J. Alhuwayshil, N. Aldeghaither, S. Alqahtani1 and M. Mansour*

Department of Pharmaceutical Sciences, College of Pharmacy, 1Department of Basic Medical Sciences, King Abdullah International Medical Research Center (KAIMRC), Riyadh 11481, Saudi Arabia

*Corresponding Author:
M. Mansour
Department of Pharmaceutical Sciences, College of Pharmacy, Riyadh 11481, Saudi Arabia
E-mail: mansoura@ksau-hs.edu.sa
Date of Received 11 December 2024
Date of Revision 18 December 2024
Date of Acceptance 26 December 2024
Indian J Pharm Sci 2024;86(6):1994-1999

This is an open access article distributed under the terms of the Creative Commons Attribution-NonCommercial-ShareAlike 3.0 License, which allows others to remix, tweak, and build upon the work non-commercially, as long as the author is credited and the new creations are licensed under the identical terms

DOI: 10.36468/pharmaceutical-sciences.1467

Abstract

In this study, a validated method was used to analyze two Metoclopramide products available in the market like premosan and primperan. The chromatographic separation involves a mobile phase with a 50:50 mixture of acetonitrile and buffer 4.6 (v/v). A C18 rapid resolution column (4.6×100 mm, 3.5 μm, Agilent high performance liquid chromatography column) was used for the separation. The λ max of metoclopramide was found to be 248 nm. The analysis was performed with a 20 μl injection volume and a 3.0 min run time. The method showed linearity for metoclopramide within the concentration range of 2-10 μg/ml. Method validation followed International Council for Harmonisation guidelines, assessing specificity, selectivity, linearity, accuracy, precision and the lower limits of quantification and lower limits of detection. The lower limits of quantification and lower limits of detection for metoclopramide were determined to be 0.80 μg/ml and 0.26 μg/ml, respectively. These methods were found to be effective for the precise quantitative analysis of metoclopramide in pharmaceutical formulations.

Keywords

Metoclopramide, validation, percentage assay, high performance liquid chromatography

Metoclopramide (MCP), commonly referred to as 4-amino-5-chloro-[N]-[2-(diethylamino)ethyl]-2- methoxybenzamide (fig. 1), is primarily used in adult and pediatric medicine as an antiemetic and gastrointestinal prokinetic drug. It is also used to treat gastroparesis in diabetic patients[1-4]. Additionally, it helps alleviate nausea, vomiting, satiety, and loss of appetite. Numerous studies have focused on its determination in different dose forms due to its broad application and excellent therapeutic effect in empirical and clinical medicine. A number of analytical techniques, including High Performance Liquid Chromatography (HPLC), spectrofluorimetric, electrochemical, chemiluminescence and others, have been proposed for the quantification of MCP in pharmaceutical products and biological fluids as tandem mass spectrophotometry’s[5-12]. According to the United States Pharmacopeia (USP) and the British Pharmacopoeia (BP) liquid chromatography is the recognized technique for Methyl Cellulose Precipitable (MCP) assay[13,14]. Many of the aforementioned methods need heating, are difficult for routine analysis and require expensive or complex equipment, or have relatively low selectivity.

pharmaceutical-sciences-struct

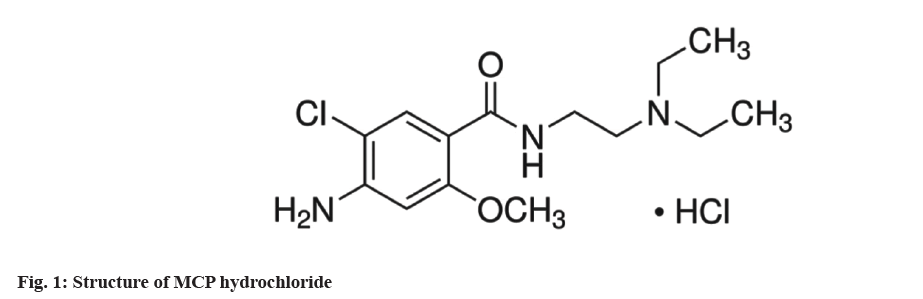

Fig. 1: Structure of MCP hydrochloride

Perhaps the most often reported methods for determining MCP in medicines are titration and visible spectrophotometry[15-22]. Furthermore, reviews of the literature showed that the spectrophotometric approach was used to estimate MCP in the injection dosage form using 0.1 M Hydrogen Chloride (HCl) as the solvent and direct Ultraviolet (UV) spectroscopy at a wavelength of 270 nm with maximum absorbance[23]. Compared to other dose forms like tablets or liquids, injections have minimal to no interference because they hardly include any excipients. In order to quantify MCP in bulk using UV spectrophotometry when its degradation products are present, a stability indicating approach has been developed. The results showed that the Limit of Quantification (LOQ) was 9.89 μg/ml and the Limit of Detection (LOD) was 3.26 μg/ml[24]. One potential substitute for the many analytical techniques currently in use is the redox titrimetric approach, which is not only sensitive and economical, but also somewhat accurate. Through the use of redox techniques, this study creates straightforward, accurate and economical methods for determining MCP in pure preparation, injectable, and tablets.

The N-oxidation reaction, which used potassium hydrogen peroxy-mono-sulfate as the titrant, served as the basis for the titrimetric approach. After a predetermined amount of time, a known excess of reagent is added, and the remaining reagent is measured iodometrically. In order to produce a yellow-brown chromogen (triiodide) with a wavelength of maximum absorption at 350 nm, the spectrophotometric approach relies on the oxidation of MCP with Oxone® in an alkali medium (pH: 9.9) and subsequent coupling with iodide in an acidic medium (pH: 4.0)[25].

The main aim of the present study was to develop a simple, cost-effective, rapid and sensitive spectrophotometric method for determining MCP in pharmaceutical formulations (tablets) and to compare the sensitivity of this method with all previously reported methods. In addition, we will modify a new HPLC method for MCP using different column and mobile phase.

Materials and Methods

Materials:

MCP standard powder (MCP hydrochloride, Glentham, United Kingdom (UK)) was used to prepare the serial dilutions of stock standard solution.

Reagents and chemicals:

Acetonitrile Chromasolv™, for HPLC, ≥ 99.9 %, was procured and collected from Honeywell (United States of America (USA)), ultra-pure water system (Milli-Q® Integral 5 (ZRXQ005T0) Millipore®) (USA), was used to have HPLC grade water and sodium acetate, Loba Chemie, India.

Chromatographic conditions:

HPLC (1260 Infinity, Agilent Technologies) with a Variable Wavelength Detector (VWD) was used for data acquisition, recording and chromatographic integration. The instrument’s software (OpenLab ChemStation) was employed for method validation and development of MCP.

Mobile phase preparation:

The aqueous mobile phase consists of a mixture of acetonitrile and buffer (50:50, v/v) under isocratic conditions. The mobile phase was filtered through a fine filter (pore size 0.45 μm), then sonicated and degassed in an ultrasonic bath (CPX5800H-E, Bransonic®).

Preparation of stock standard solution:

A standard solution of MCP was prepared by dissolving 1000 mg of MCP powder in double-distilled water. The flask was gently shaken to ensure complete dissolution of the powder. The final concentration of the MCP stock solution was 1.00 mg/ml.

Preparation of standard serial dilution:

Preparation of standard calibration curve samples: The stock standard solution of MCP (1.00 mg/ml) was diluted with double-distilled water to concentrations ranging from 2 to 10 μg/ml, and the final volume was adjusted to 100 ml to prepare the calibration standard solutions. A portion of the standard solution was then pipetted using a micropipette (1000 μl) into a glass vial (2 ml screw vial, 8 mm, Thermo Fisher Scientific Inc.) for injection into the HPLC system.

Preparation of quality control samples: Regarding the preparation of low, medium and high-quality control samples, a stock standard solution of MCP (1.00 mg/ ml) were diluted with the double distilled water over the range of 2 to 10μg/ml to complete volume to 100 ml. Then, each serial solution was mixed very well and the final concentrations were 3, 5, and 9 μg/ml (two solutions prepared for each concentration). The glass vial (2 ml screw vial 8 mm, Thermo Fisher Scientific Inc.) was filled with standard solution and injected into the HPLC system.

Preparation of pharmaceutical samples assay test of tablet formulation: Using the analytical balance, 10 tablets of premosan and primperan were precisely weighed individually and the average weights were then noted. Separately, 10 tablets of each substance were ground into a fine powder. Each tablet was weighed to determine the average weight. After being moved to the volumetric flask, the powder was diluted with mobile phase until it reached the desired level. For every pharmaceutical formulation, the concentration of the MCP assay test solution was 1 mg/ml. Immediately after, the sample was filtered through a 0.45 μm syringe. Using a micropipette 1000 μl, Eppendorf Research® plus, 10000 μl of the sample was pipetted into a 100 ml amber volumetric flask and diluted to the water mark. The concentration at the end was 100.0 μg/ml. For analysis, 3 solutions were prepared. 5 vials of glass (2 ml screw vial 8 mm, Thermo Fisher Scientific Inc.) were labelled and 20 μl of the sample was injected into the HPLC system.

Method development, optimization and validation: This study describes the development and validated method HPLC for the determination of MCP in pharmaceutical formulation.

Reverse-Phase HPLC (RP-HPLC):

Method development: For the determination of MCP, a straightforward, sensitive, accurate, and precise RP-HPLC approach was created. Initially, a number of columns and mobile phases were examined to ensure they had the proper chromatogram. Selectivity, sensitivity, and acceptable chromatographic parameters of the generated peaks in terms of peak sharpness, peak symmetry and tailing factor have been used to establish the appropriate column and mobile phase employed in the improved procedure. Using the ZORBAX Eclipse Plus C18 rapid resolution (4.6×100 mm, 3.5 μm, Agilent HPLC column), MCP was separated chromatographically. Using a mobile phase consisting of an isocratic combination of acetonitrile:buffer pH 4.6 (50:50, v/v) at a flow rate of 1.00 ml/min, the detection wavelength was 248 nm. The separation was accomplished with an injection volume of 20 μl at 25° with a run time of 3.0 min.

Method validation: The International Conference on Harmonization's (ICH, 2005) guidelines, which address issues including specificity, selectivity, linearity, accuracy, precision, LOQ and LOD, were followed in the validation of the suggested approach.

Specificity/selectivity: The ability of an analytical technique to distinguish and quantify the analyte in the presence of possible interfering compounds in the sample is known as selectivity. The analysis of selectivity showed that at the analyte's retention time, no discernible reaction attributed to interfering substances was found. It was discovered that MCP has a retention period of 1.4 min.

Even when there were other ingredients in the formulation, this technique showed excellent specificity in identifying the MCP analyte.

Linearity and range: According to ICH criteria, the analytical method was considered linear if it could produce test findings that were exactly proportionate to the analyte concentration in samples falling within a specified range. To establish the linearity of the suggested approach, several aliquots of the drug's standard solution were made from the stock solution and examined. The drug's correlation coefficient (r2≥0.997) indicated linearity in the 2-10 μg/ml range.

Accuracy and precision: A set of calibration standard curve samples was prepared for the intraday accuracy and precision investigation and ten Quality Controls (QCs) samples of each concentration; low (03.00 μg/ ml), medium (5.00 μg/ml) and high (9.00 μg/ml) were evaluated in a single day. Additionally, a set of calibration standard curve samples were prepared for the interday accuracy and precision research and 5 QC samples of each concentration low (3.00 μg/ml), medium (5.00 μg/ml) and high (9.00 μg/ml) were analyzed over the course of three days. For both intraday and interday validation, the mean, percentage accuracy, Standard Deviation (SD) and percentage Coefficient of Variation (CV) were computed.

Application of the proposed method for pharmaceutical formulation: Determining the exact amount of the active ingredient was the goal of the assay test for different strengths of MCP tablets. Five calibration standards, 5 QCs samples and 5 assay samples were prepared for each batch analysis with the goal of injecting them into the RP-HPLC procedure.

Results and Discussion

The main challenge of our study was developing and validating various techniques using different tools, while ensuring that the same set of calibration standards was consistently applied. The proposed HPLC methods were validated in accordance with ICH guidelines by assessing specificity, selectivity, linearity, accuracy, precision, LOQ, LOD and robustness.

In the concentration range of 2-10 μg/ml, the HPLC validated chromatographic findings showed excellent linearity, with a correlation coefficient (r2≥0.997). With a CV error of less than 10 %, the accuracy for both intraday and interday testing was within 100 %-180 % fig 2. Both Lower LOQ (LLOQ) and Lower LOD (LLOD) were established at 100 ng/ml.

pharmaceutical-sciences-phase

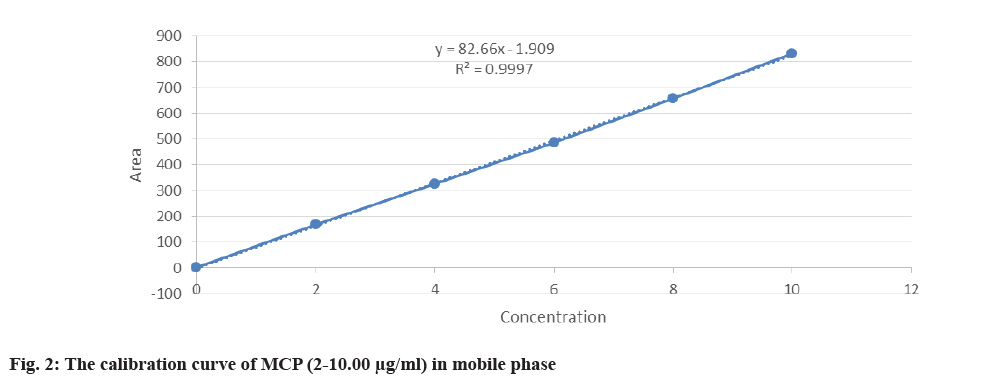

Fig. 2: The calibration curve of MCP (2-10.00 μg/ml) in mobile phase

Furthermore, the approach proved suitable for the highly sensitive study. Every validation parameter was carried out in compliance with ICH regulations. With an intraday and interday precision assessment (% CV) of less than 2 % (acceptable range ±10 %), the validation data demonstrated the sensitivity, accuracy, and precision of the HPLC technique in aqueous solutions. According to Table 1, the intraday and interday percentage accuracy of MCP varied from 101 % to 108 %, falling within the generally accepted range of 90 % to 110 %.

Proposed methods

MCP concentration (µg/ml) Mean % accuracy SD % CV

Intraday validation (accuracy and precision)

3 3.2619 108.7307 0.0476 1.4603
5 5.173 103.4603 0.0780 1.5074
9 8.9955 99.9500 0.1267 1.4081

Interday validation (accuracy and precision)

3 03.2078 106.928 0.0354 1.1044
5 04.9400 98.8004 0.0470 0.9508
9 09.1127 101.2519 0.0929 1.0200

Table 1: Summary of Accuracy and Precision Results of the Proposed HPLC Method

Additionally, using the equations (LLOD=3.3×SD/ slope) and (LLOQ=10×SD/slope), the chromatographic method demonstrates a LLOQ of 0.80 μg/ml and a LLOD of 0.26 μg/ml, respectively. The HPLC method was used to analyze 2 pharmaceutical formulations of MCP tablets: Primperan and premosan. A calibration curve was used to ascertain the amount of MCP present in the tablet formulations after the peak area of the sample solution was noted. Table 2 summarizes the assay results, which showed that the 2 MCP tablets active ingredient percentages varied from 84 % to 100 %, satisfying the ICH acceptance standards of 84 % to 110 %[26]. The chromatogram showed the separation of MCP (10 mg tablets) premosan and primperan both made to an injectable dilution of 20 μg/ml in (fig. 3 and fig. 4).

S. No Name of product Strength (mg) Test product concentration (µg/ml) Average (of 6 samples) % assay STD % RSD
1 Premosan 10 100 84.705018 84.705018 0.058292 0.068818
2 Primperan 10 100 85.846362 85.846362 2.167737 2.525136

Table 2: MCP Assay Tests Were Analysed by the HPLC

pharmaceutical-sciences-tablets

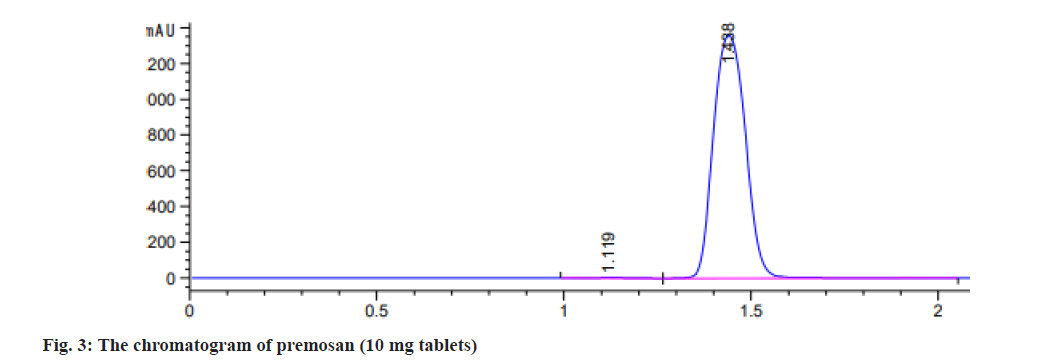

Fig. 3: The chromatogram of premosan (10 mg tablets)

pharmaceutical-sciences-chrom

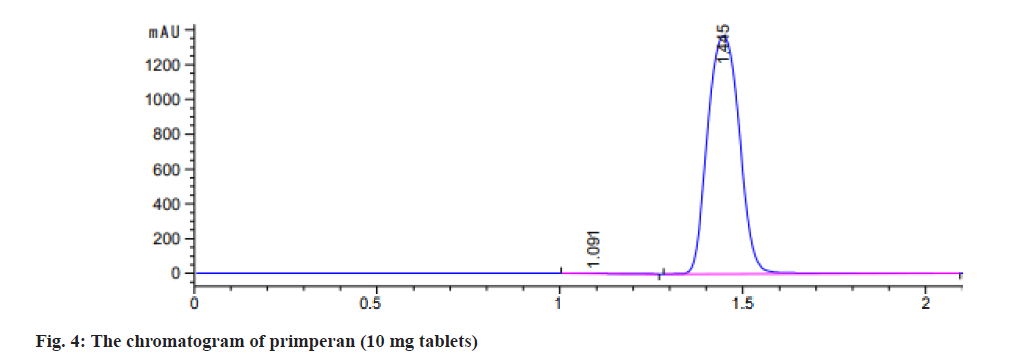

Fig. 4: The chromatogram of primperan (10 mg tablets)

In accordance with ICH recommendations, the current investigation employed validated analytical procedures to ensure sensitive and accurate MCP measurement. Notably, the HPLC approach demonstrated improved linearity, sensitivity, accuracy and precision. Numerous in-vitro applications, including stability and quality control tests, are ideally suited for these analytical techniques.

Acknowledgments:

The King Abdullah International Medical Research Center (KAIMRC) provided financing and assistance for this research proposal, for which the authors are grateful.

Author’s contribution:

Ibrahim Farh, Nouf Alnajim, Abdulrahman Alossimi, Jinan Alhuwayshil and Norah Aldeghaither supervised all practical work, rewrote the manuscript and reviewed it. Sultan Alqahtani and Mahmoud Mansour suggested the research topic and the experimental design.

Conflict of interest:

The authors declared no conflict of interests.
